# FlowNet **Video Stabilization using Deep Distilled Global Motion Estimates** [English](/FlowNet_Video_Stabilization/) · [Español](/FlowNet_Video_Stabilization/README.es.html) · [🌐 Project Page](https://dan178a.github.io/FlowNet_Video_Stabilization/) ![Python](https://img.shields.io/badge/Python-3.11-3776AB?logo=python&logoColor=white) ![PyTorch](https://img.shields.io/badge/PyTorch-2.4-EE4C2C?logo=pytorch&logoColor=white) ![CUDA](https://img.shields.io/badge/CUDA-12.4-76B900?logo=nvidia&logoColor=white) ![License](https://img.shields.io/badge/License-Apache_2.0-blue.svg)

FlowNet stabilizes shaky handheld video by estimating global camera motion with a deep, distilled optical-flow network, converting that flow into an affine camera path, smoothing it with a quadratic-programming path optimizer, and finally refining the result with a multi-scale photometric alignment pass.

✨ Results

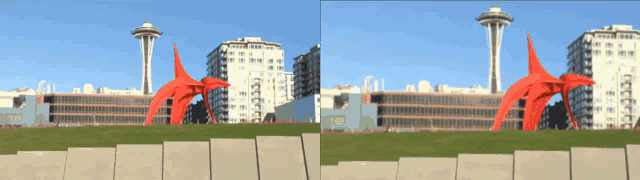

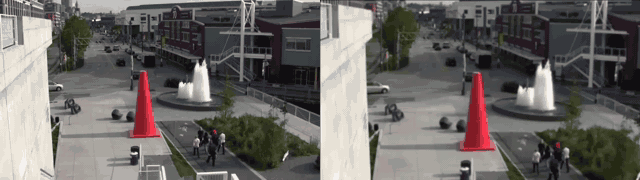

Input (shaky) vs. Output (stabilized) — left: original, right: stabilized.

Handheld phone clip	Synthetic shake

Stabilized frames from a longer sequence:

Stabilized frames

🧠 How it works

shaky frames ──► Global PWC-Net (distilled) ──► affine flow coefficients
                                                        │
                                          cumulative camera path (affine)
                                                        │
                                            QP path smoothing (crop-aware)
                                                        │
                                        multi-scale photometric refinement
                                                        │
                                               stabilized video

Global motion estimation — a distilled PWC-Net variant (GLNoWarp4YTBB) estimates dense optical flow between consecutive frames. The flow is compressed with a DCT-based parameterization (Utils/DCTUtility.py) so that global camera motion is captured by a handful of coefficients.
Affine camera path — per-frame affine coefficients (Utils/AffineUtility.py) are accumulated into a camera path and smoothed by a QP optimizer (PathStabilizers/StdPathStabilizerQP.py) that guarantees a minimum overlap (--maxAffineCrop) between the original and warped frames.
Warping — stabilized coefficients are inverted and applied with grid_sample in chunks, automatically tracking the valid (non-border) region.
Photometric refinement — a multi-scale photometric stabilizer (Stabilizers/MSPhotometric.py) fits low-order polynomial corrections over a sliding window (DCT low-pass, Gaussian weighting) to remove residual jitter that the affine path cannot model.
Composition — Stabilizers/ComposedStabilizer.py chains both passes: GNetAffine → MSPhotometric.

The pretrained flow model ships with the repo (GlobalFlowNets/trainedModels/GFlowNet.pth), so no training is required to stabilize your own videos.

🚀 Getting started

Requirements

Python 3.11
CUDA-capable GPU (the model runs in .cuda() mode)
CUDA 12.4 (or adapt the torch install line to your CUDA version)

Installation

git clone https://github.com/Dan178A/FlowNet_Video_Stabilization.git
cd FlowNet_Video_Stabilization

python -m venv venv
venv\Scripts\activate            # Windows  (use source venv/bin/activate on Linux)

pip install -r requirements.txt

If your CUDA version differs from 12.4, install PyTorch with the matching wheel from pytorch.org first, then pip install -r requirements.txt.

Stabilize a video

python stabilizeVideo.py --inpVideoPath inputs/sample.avi --outVideoPath outputs/stabilized.avi

Options:

Flag	Default	Description
`--inpVideoPath`	`inputs/VID_...mp4`	Path to the shaky input video
`--outVideoPath`	`outputs/VID_...mp4`	Where to write the stabilized video
`--maxAffineCrop`	`0.8`	Minimum frame overlap kept after cropping (lower = more aggressive stabilization, larger crop)

The output is written at the input’s frame rate.

📁 Project structure

FlowNet_Video_Stabilization/
├── stabilizeVideo.py            # CLI entry point
├── GlobalFlowNets/              # Distilled global motion network
│   ├── GlobalPWCNets.py         #   model factory (getGlobalPWCModel)
│   ├── PWCBase.py / PWCNet.py   #   PWC-Net backbone
│   ├── FlowLosses.py            #   training losses
│   └── trainedModels/           #   GFlowNet.pth + config.json
├── Stabilizers/                 # Stabilization passes
│   ├── ComposedStabilizer.py    #   GNetAffine + MSPhotometric pipeline
│   ├── JoinedAdaptiveGNetStabilizer.py  # flow → affine path → warp
│   └── MSPhotometric.py         #   multi-scale photometric refinement
├── PathStabilizers/
│   └── StdPathStabilizerQP.py   # QP-based camera-path smoothing
├── Utils/                       # DCT, affine, cropping, video I/O helpers
├── inputs/  outputs/            # demo videos
└── docs/                        # project page (GitHub Pages) + media

📄 License

Released under the Apache License 2.0.
